Floors and Linings

Solutions to protect the cargo area

Floors and Linings

Solutions to protect the cargo area

bott floors and side lindings protect the cargo space in your commercial vehicle from wear and tear in daily use. As well as floors and side linings, a roof liner is also available. The robust and durable materials used protect the vehicle and its residual value for the long term. Anti-slip surfaces and edge protection at all door openings enhance user safety.

Loading...

bott vario floor panels

This is how load protection begins

bott vario floor panels

This is how load protection begins

Protection of your cargo area starts with the flooring panel. The bott vario flooring panel is fastened securely to the floor of your commercial vehicle. bott vario van racking modules are then firmly anchored to it for the greatest possible level of safety in the event of an accident.

The surface finish of the bott vario flooring panel is non-slip so that you always have a firm footing - even in wet weather. Our anti-slip mats are available as accessories, and help prevent the load from slipping. Due to a special slip-resistant coating, bott vario flooring panels have a high coefficient of friction and thus safety - even without anti-slip load mats. If required, integrated aluminium edge protection strips can be added to the flooring panel at all door openings. For the transport of gas bottles, we can offer a professionally installed ventilation system in both the floor and roof of your van.

  • lightweight and moisture-resistant 12 mm birch plywood floor
  • upper surface: robust slip-resistant synthetic resin film coating with bott decor
  • underside: synthetic resin film coating with a smooth surface
  • edges: profiled, moisture-resistant, grey in colour with aluminum edge protection at all door openings
  • edge protection at all door openings is normally included on floors with lashing rails
  • emissions class E1 in accordance with EN 717-2 / slip resistance R10, Taber value> 500
  • installation fixings included
  • vastly simplified installation via hold-down cups is possible
Loading...

Flooring panel - with transverse lashing rails

Flooring panel - with transverse lashing rails

  • aluminum edge protection at all door openings
  • the lashing rails are located directly beneath the roof spar
  • plastic covers provide easy access to the vehilce lashing points and a flat easy to clean cargo space
Loading...

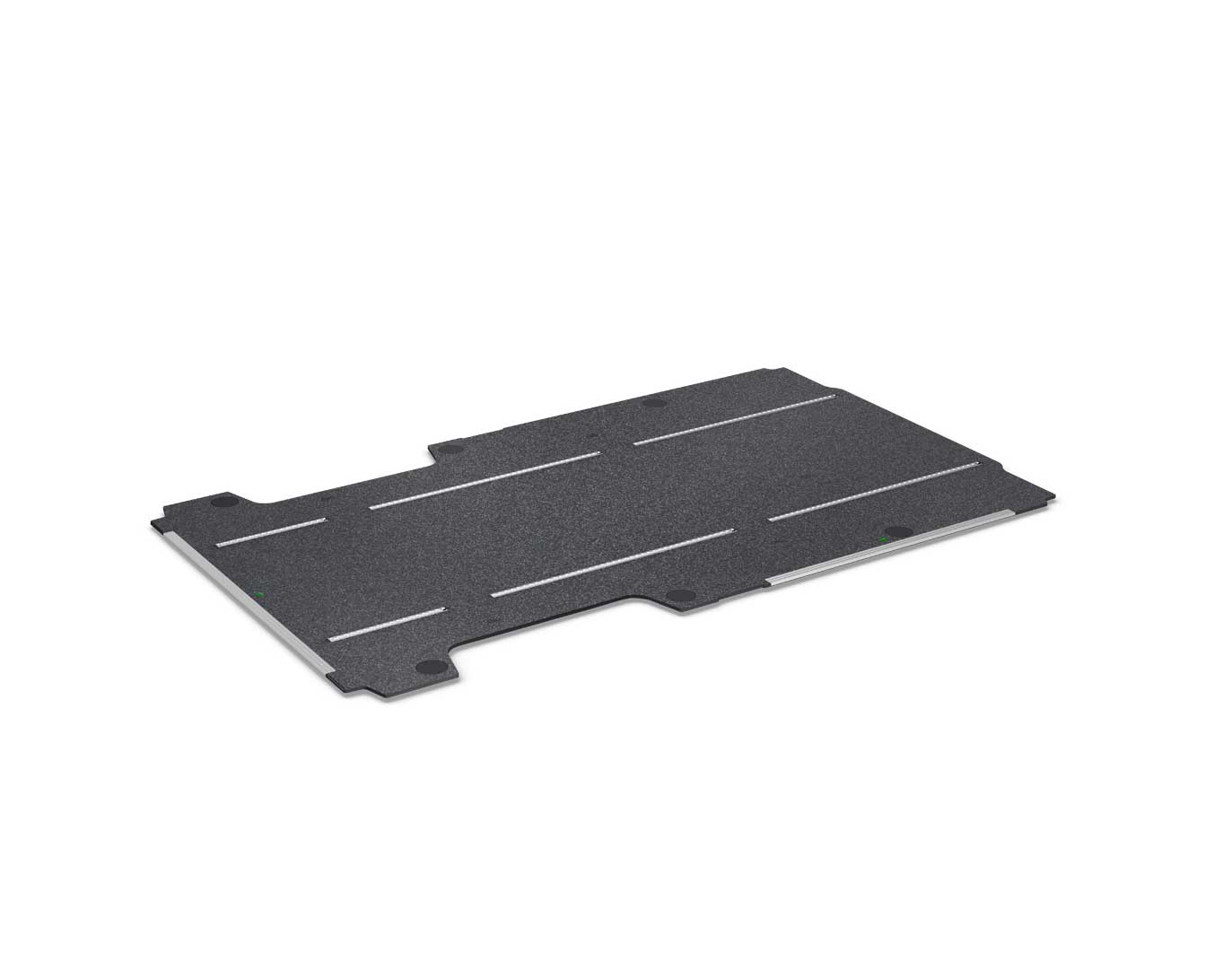

Flooring panel - with longitudinal lashing rails

Flooring panel - with longitudinal lashing rails

  • aluminum edge protection at all door openings
  • the distance between the lashing rails is 880 mm as standard, alternative spacings are available on request
  • plastic covers provide easy access to the vehilce lashing points and a flat easy to clean cargo space
Loading...

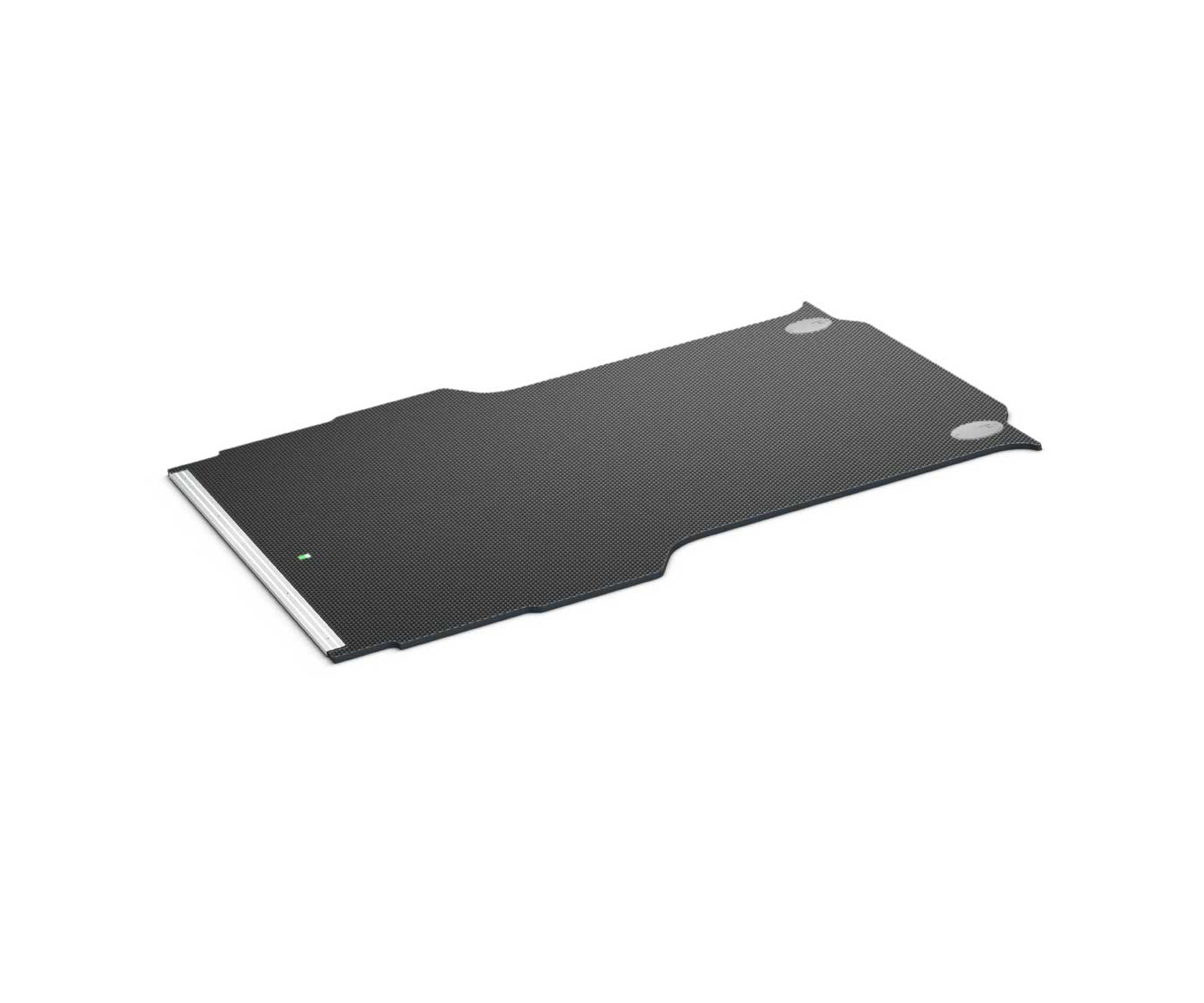

Flooring panels for pick ups

Flooring panels for pick ups

  • plastic
  • Weatherproof; suitable for vehicles without a hardtop
  • high quality anti-slip surface
  • high levels of mechanical stability
  • UV-resistant
  • with edge protection at door openings
Loading...

Side linings for reliable protection

Side linings for reliable protection

We offer you many different options for lining the cargo area of your van. This helps protect the bodywork against dents and scratches. The addition of floors and linings protects the paint and thus preserves the value of your commercial vehicle. The bott side lining is available in different materials: recyclable plastic or perforated aluminum onto which bott perfo tool hooks and holders can be attached. In addition to the floors and linings, we can also offer you window grilles for the load compartment.

Loading...

Also fast in real time: The installation of our sidewall claddings in video.

We have summarized the advantages of our sidewall cladding for you:

vario protect

vario protect

  • pre-profiled side lining made from recyclable polyproylene
  • multiwall sheets with a thickness of 4 mm and a structured surface on one side
  • colour: light grey (RAL 7035)
  • UV-resistant, leightweight, will not corrode or rot,
  • chemical resistant
  • extremely lightweight and easy to clean
  • installation fixings included
Loading...

vario protect plus

vario protect plus

  • pre-profiled side lining made from 1mm thick aluminum
  • light and extremely impact resistant
  • with perfo hole pattern to accept bott perfo hooks and holders
  • installation fixings included
Loading...

vario protect rail/prorail

vario protect rail/prorail

  • side linings with integrated load securing rails with airline profile
  • for installing bott vario van racking or for securing loads with lashing straps and fittings
  • uniform transferance of impact loads into the vehicle shell achieved by bonding the rails
  • load securing rails remain in the vehicle after removal of van racking thus enahncing resale values
  • installation fixings included
Loading...

Linings for your roof

Customized vehicle equipment

Linings for your roof

Customized vehicle equipment

A roof liner completes the protection of your cargo space. Additional lashing rails for securing shoring poles can also be integrated on the roof spars - with optional LED lighting. Interior flood lighting in the cargo area makes your work easier in twilight and darkness. We can advise you on the options available for optimal cargo space lighting.

The advantages?

  • profiled roof liners made from recyclable polypropylene (vario protect)
  • Multiwall sheets with a thickness of 4 mm and a structured surface on one side
  • colour: light grey (RAL 7035)
  • UV-resistant, leightweight, will not corrode or rot, chemical-resistant
  • easy to clean
  • installation fixings included
Loading...

We offer our load compartment protection solutions for a wide range of van models. Tailored to your needs.

Floor panels, side panel cladding, airline fastening rails, tie rods, load securing elements: All in one. We have summarized what such a load compartment lining could look like in your vehicle, using a Renault van as an example.

Reliable load compartment protection using the example of a Renault van

Loading...
